Inspection Of 01005 Components Now Standard In OptiCon AOI Systems

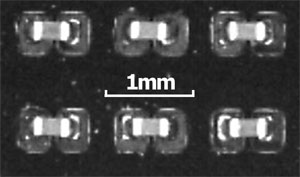

Jena, Germany - Setting new standards in AOI, the OptiCon AOI systems from GOEPEL electronic now include inspection of 01005 components as well as solder joints of 0.3mm pitch raster as standard. This inspection scope extension is achieved by an increase in lens resolution in the camera module. The result is an essential improvement in detail recognition for the inspection of smallest structures. The highly-proven, custom-designed telecentric lens which offers faultless image recording independent from the components' position and height extension has been retained.

This revolutionary performance increase is enabled by the utilisation of a pixel-adapted lens, whose optical design has been adjusted to the pixel geometry of the CCD matrix. By a characteristic optimised image transformation a resolution of 10.5µm per pixel is achieved which results in an increase in reliability of the respective recognition algorithm. Additionally, the higher pixel number enables a better visual presentation, and is beneficial for operation, e.g. for the manual setting of inspection areas.

OptiCon systems, which are already in use, can be upgraded on-site.

GOEPEL electronic is a leading vendor or electric and optical test and inspection systems. The Company of 130 employees generated a revenue of 18.5 million EURO in 2007, maintaining support and sales offices in Germany, France, the United Kingdom, and the United States. An extended distribution and service network of more than 300 specialists ensures excellent local and on-site customer support for several thousand worldwide system installations. GOEPEL electronic has continuously been ISO9001 certified since 1996 and has been honoured with TOP-JOB and TOP-100 awards for being one of the best medium-sized companies in Germany. GOEPEL electronic's products won several awards in recent years and are used by the leading companies in telecommunication, automotive, space and avionics, industrial controls, medical technology, and other industries.

For more information about the Company and its products can be found online at www.goepel.com.

SOURCE: GOEPEL electronic
