Strategic Test Releases 2-Channel 2-Bit Digitizer/Transient Recorder Cards

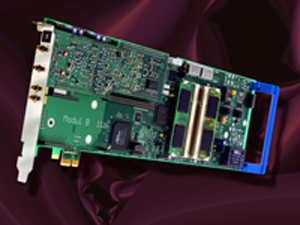

Woburn, MA - Strategic Test Corp. has announced the UF2e-3120 two-channel 10 MS/s 12-bit waveform digitizer PCI Express card. Signals can be recorded to the card memory of up to 2 Giga-samples or streamed at full rate to the host PC. Unique features include the options for dual-timebase sampling, synchronous digital inputs, asynchronous digital I/O and the possibility to synchronize up to 542 channels.

Drivers and programming examples for Microsoft Windows Vista, XP64, XP and Linux (RedHat, Fedora, SuSe, Sarge) are supplied with the card, as well as the SBench 5.3 oscilloscope program. SDK's for MATLAB, LabVIEW, Agilent-VEE, DASYLab and LabWindows/CVI are available as options.

Key specifications include:

• 32 Mega-samples memory --- expandable to 2 Giga-samples
• Continuous streaming to host PC > 120 MS/s
• Effective Number of Bits > 10.6 bits
• Signal-to-Noise Ratio > 66.0 dB
• Total Harmonic Distortion < -63.0 dB
• The standard -3dB bandwidth is > 5 MHz

Each channel its own 10 MS/s ADC for true simultaneous sampling. Eight input voltage ranges from ±50 mV to ±10 V, a programmable offset of ±100% and input impedances of 50 Ohm or 1 MOhm, allow each channel to be individually configured for the signal source.

Like all UltraFast boards, the UF2e-3120 waveform digitizer cards can be customized with hardware options to best match the application:

• Onboard memory: 32, 64, 128, 256, 512, 1024 or 2048 Mega-samples
• Multiple Recording: memory segmentation
• Gated Sampling: output clock controlled by external TTL signal
• TimeBase : records time of trigger events or Gates
• ABA Mode: slow-fast-slow recording on trigger
• Star Hub: synchronization of up to 5 or 16 boards, or 5 to 16 PC's to a maximum or 271 boards. Can be used with Digitizer, AWG and Digital I/O boards to create mixed-mode systems
• Digital Inputs : adds 8 synchronous digital inputs
• BaseXIO : adds 8 asynchronous digital I/O lines

SOURCE: Strategic Test Corp.
